Beiträge von Odiolitos

SOLVED IT!

Turns out, the ground cable from the switch, though tinned, got frayed when I inserted it in the PCB and touched the signal cable. Boy, are these cables finicky!!

I measured voltage to the four transistors, and here's what I found:

t1
e 0,05
b 0,65
c 4,22

t2

e 0,05
b 0,65
c 4,19

t3

e 0,04
b 0,65
c 4,19

t4

e 1,09
b 1,57
c 5,18

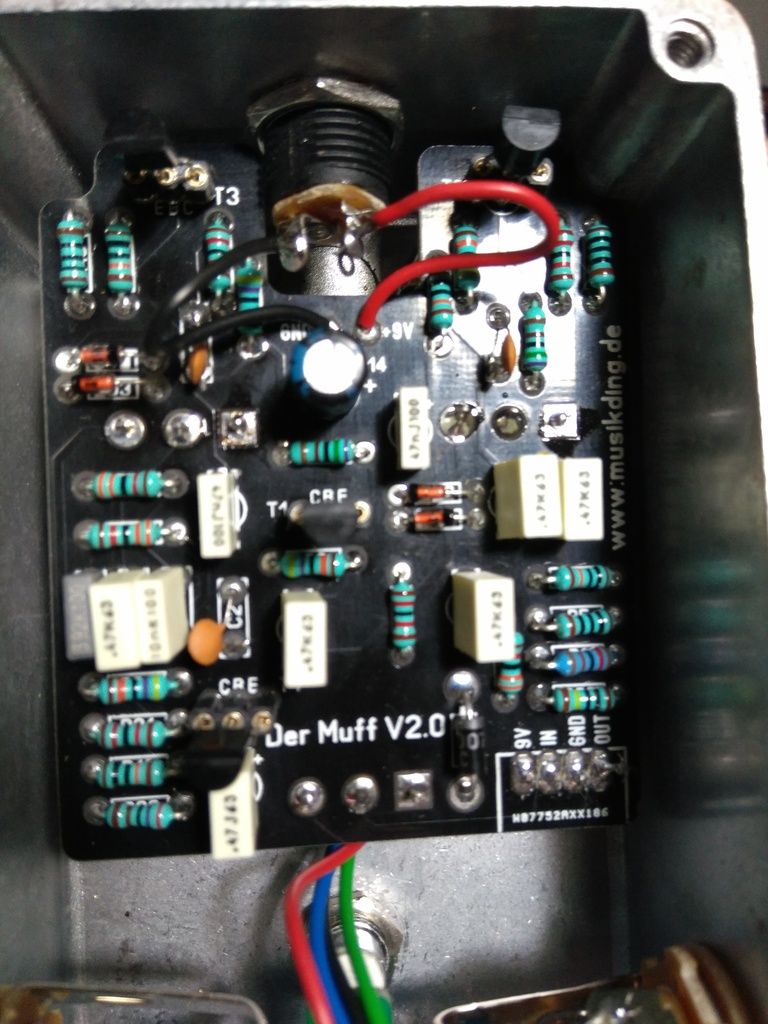

I wanted to upload an image of the board, but it seems like I have to put it on another server and link from there. I'll be right back with it!
[Blockierte Grafik: http://i150.photobucket.com/albums/s94/Odiolitos/IMG_20170328_205445_zpsot7mk9vo.jpg]

Hi!

I built this pedal following all the instructions, and when bypassed, the signal is fine, but when I turn it on, I get nothing but white noise! Funnily enough, that white noise changes in tone, intensity and volume when using the knobs. Any ideas what could be causing this?

Thanks a lot!
