LED lights?

polifemo

I suppose that I must have wired something wrong when installing the footswitch kit as I get the following:

- Clean channel= Red LED
- Distortion channel = Green LED
- Boost channel= No LED

I was expecting something like:

- Clean channel= No LED
- Distortion channel = Red LED
- Boost channel= Green LED

What did I do wrong?

maumari

Zitat von polifemo;232796

I suppose that I must have wired something wrong when installing the footswitch kit as I get the following:
- Clean channel= Red LED
- Distortion channel = Green LED
- Boost channel= No LED
I was expecting something like:
- Clean channel= No LED
- Distortion channel = Red LED
- Boost channel= Green LED
What did I do wrong?

Hi Polifemo, I have a similar problem with my setup and can't figure out.
I made the switch mod and use the musikding double switch pedal. To get the pedal working, I had to invert the led connection into the pedal (according to the instruction scheme), but now that the pedal switches correctly between the channels and lets you choose the boost, the leds on the pedal don't work at all (while the ones on the front panel do).
What could it be? Did you have similar issues?

PS on my panel the leds work correctly (with or without the pedal switch).

polifemo

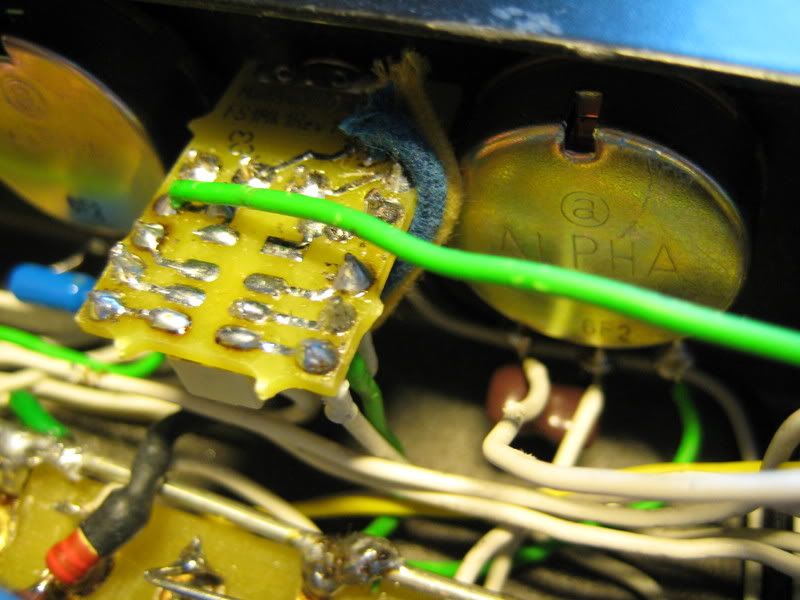

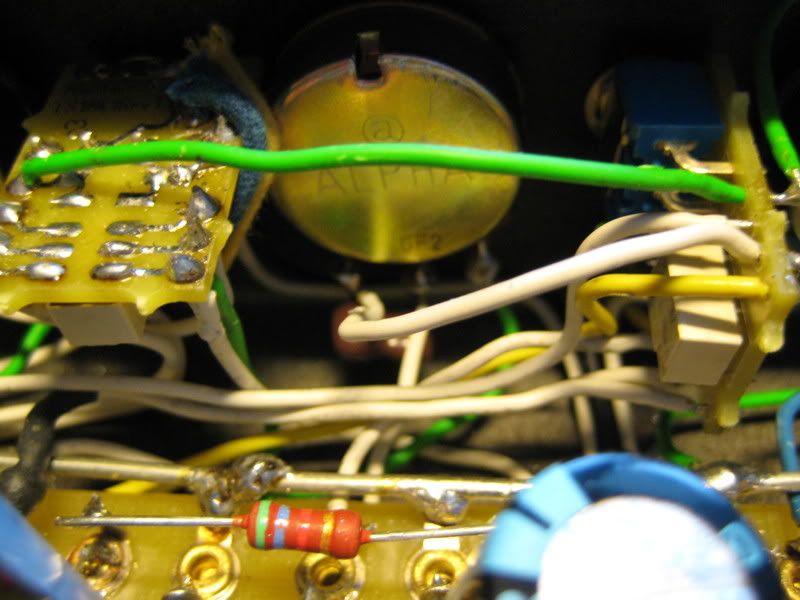

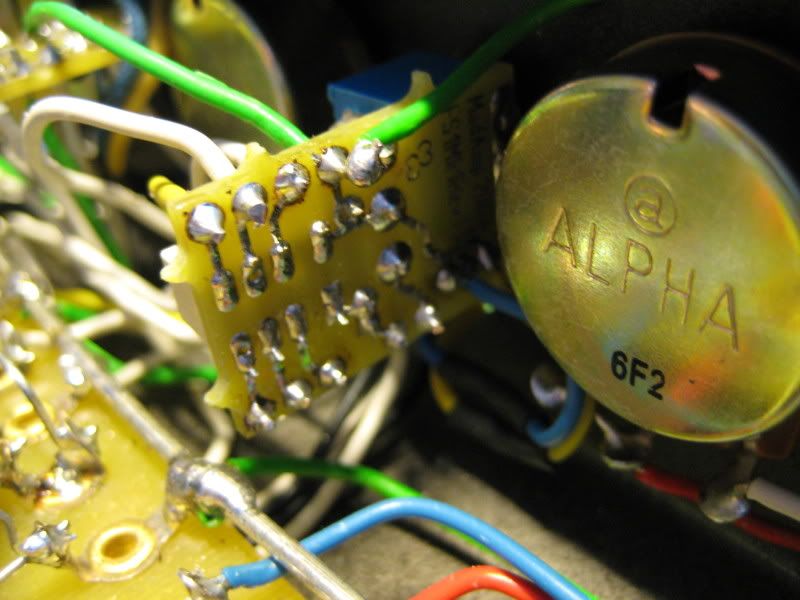

Here are some pics of my switchboards:

[Blockierte Grafik: http://i26.photobucket.com/albums/c109/prof2915/IMG_0160.jpg]

[Blockierte Grafik: http://i26.photobucket.com/albums/c109/prof2915/IMG_0161.jpg]

[Blockierte Grafik: http://i26.photobucket.com/albums/c109/prof2915/IMG_0162.jpg]

-When my channel switch is pointing towards the "Ch1", channel 1 is activated, and the red LED is "on" (Should be off).

-When my channel switch is pointing towards the "Ch2", channel 2 is activated, and the red LED is "off" (Should be on).

-When my boost switch is in the up position (++) the boost mode is activated, but the green led is "off" (Should be "on")

- -When my boost switch is in the down position, the boost mode is off, but the green led is "on" (Should be "off")

I will have to switch some wires, BUT WHICH ONES?????????

PLEASE HELP!!!!!!!!!

MAD

Hi polifemo,
I'm sorry to say, but your two switch boards are wired AND mounted the wrong way around. So you need to take off the two boards, rewire them according to the documentation (page 15) and remount them the right way ("face up" is the position shown in the picture).
Regards,
Martin

polifemo

Zitat von MAD;233247

Hi polifemo,
I'm sorry to say, but your two switch boards are wired AND mounted the wrong way around. So you need to take off the two boards, rewire them according to the documentation (page 15) and remount them the right way ("face up" is the position shown in the picture).
Regards,
Martin

Don´t be sorry I´m much greatful for your help!

Thanks.
